Hierarchical and k-means clustering

Introduction

We use the following packages:

library(MASS) # make sure to load mass before tidyverse to avoid conflicts!
library(tidyverse)
library(patchwork)
library(ggdendro)

In this practical, we will apply hierarchical and k-means clustering to two synthetic datasets. The data can be generated by running the code below.

  1. Try to understand what is happening as you run each line of the code below.
# randomly generate bivariate normal data
set.seed(123)
sigma      <- matrix(c(1, .5, .5, 1), 2, 2)
sim_matrix <- mvrnorm(n = 100, mu = c(5, 5), Sigma = sigma)
colnames(sim_matrix) <- c("x1", "x2")

# change to a data frame (tibble) and add a cluster label column
sim_df <-
  sim_matrix %>%
  as_tibble() %>%
  mutate(class = sample(c("A", "B", "C"), size = 100, replace = TRUE))

# Move the clusters to generate separation
sim_df_small <-
  sim_df %>%
  mutate(x2 = case_when(class == "A" ~ x2 + .5,
                        class == "B" ~ x2 - .5,
                        class == "C" ~ x2 + .5),
         x1 = case_when(class == "A" ~ x1 - .5,
                        class == "B" ~ x1 - 0,
                        class == "C" ~ x1 + .5))
sim_df_large <-
  sim_df %>%
  mutate(x2 = case_when(class == "A" ~ x2 + 2.5,
                        class == "B" ~ x2 - 2.5,
                        class == "C" ~ x2 + 2.5),
         x1 = case_when(class == "A" ~ x1 - 2.5,
                        class == "B" ~ x1 - 0,
                        class == "C" ~ x1 + 2.5))
  1. Prepare two unsupervised datasets by removing the class feature.
df_s <- sim_df_small %>% select(-class)
df_l <- sim_df_large %>% select(-class)

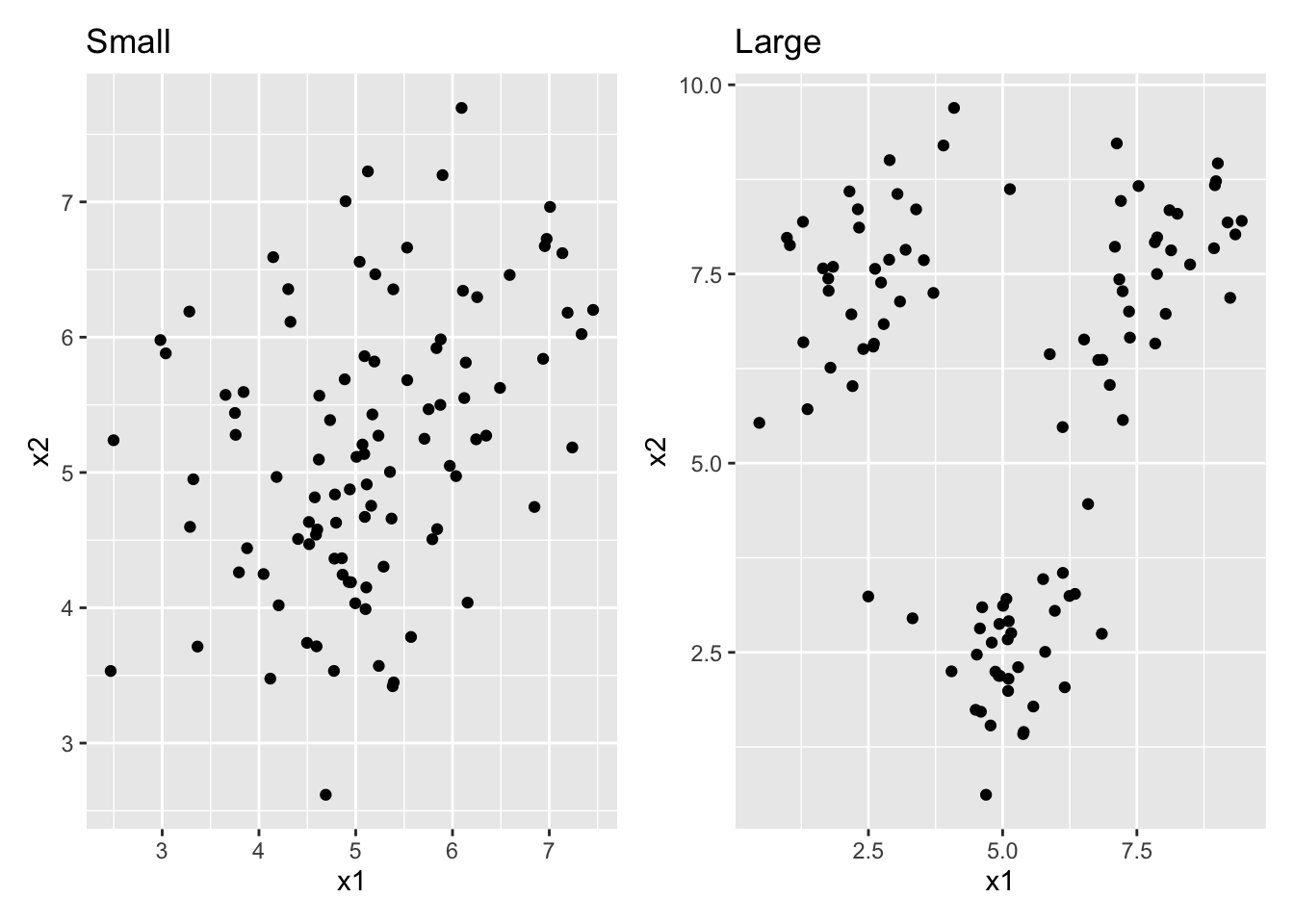

  1. For each of these datasets, create a scatterplot. Combine the two plots into a single frame (look up the “patchwork” package to see how to do this!) What is the difference between the two datasets?
# patchwork defines the "+" operator to combine entire ggplots!
df_s %>% ggplot(aes(x = x1, y = x2)) + geom_point() + ggtitle("Small") +
df_l %>% ggplot(aes(x = x1, y = x2)) + geom_point() + ggtitle("Large")

# df_s has a lot of class overlap, df_l has very little overlap

Hierarchical clustering

  1. Run a hierarchical clustering on these datasets and display the result as dendrograms. Use euclidian distances and the complete agglomeration method. Make sure the two plots have the same y-scale. What is the difference between the dendrograms? (Hint: functions you’ll need are hclust, ggdendrogram, and ylim)
dist_s <- dist(df_s, method = "euclidian")
dist_l <- dist(df_l, method = "euclidian")

res_s <- hclust(dist_s, method = "complete")
res_l <- hclust(dist_l, method = "complete")

ggdendrogram(res_s, labels = FALSE) + ggtitle("Small") + ylim(0, 10) +
ggdendrogram(res_l, labels = FALSE) + ggtitle("Large") + ylim(0, 10)

# the dataset with large differences segments into 3 classes much higher up.
# Interestingly, the microstructure (lower splits) is almost exactly the same
# because within the three clusters there is no difference between the datasets
  1. For the dataset with small differences, also run a complete agglomeration hierarchical cluster with manhattan distance.
dist_s2 <- dist(df_s, method = "manhattan")
res_s2  <- hclust(dist_s2, method = "complete")

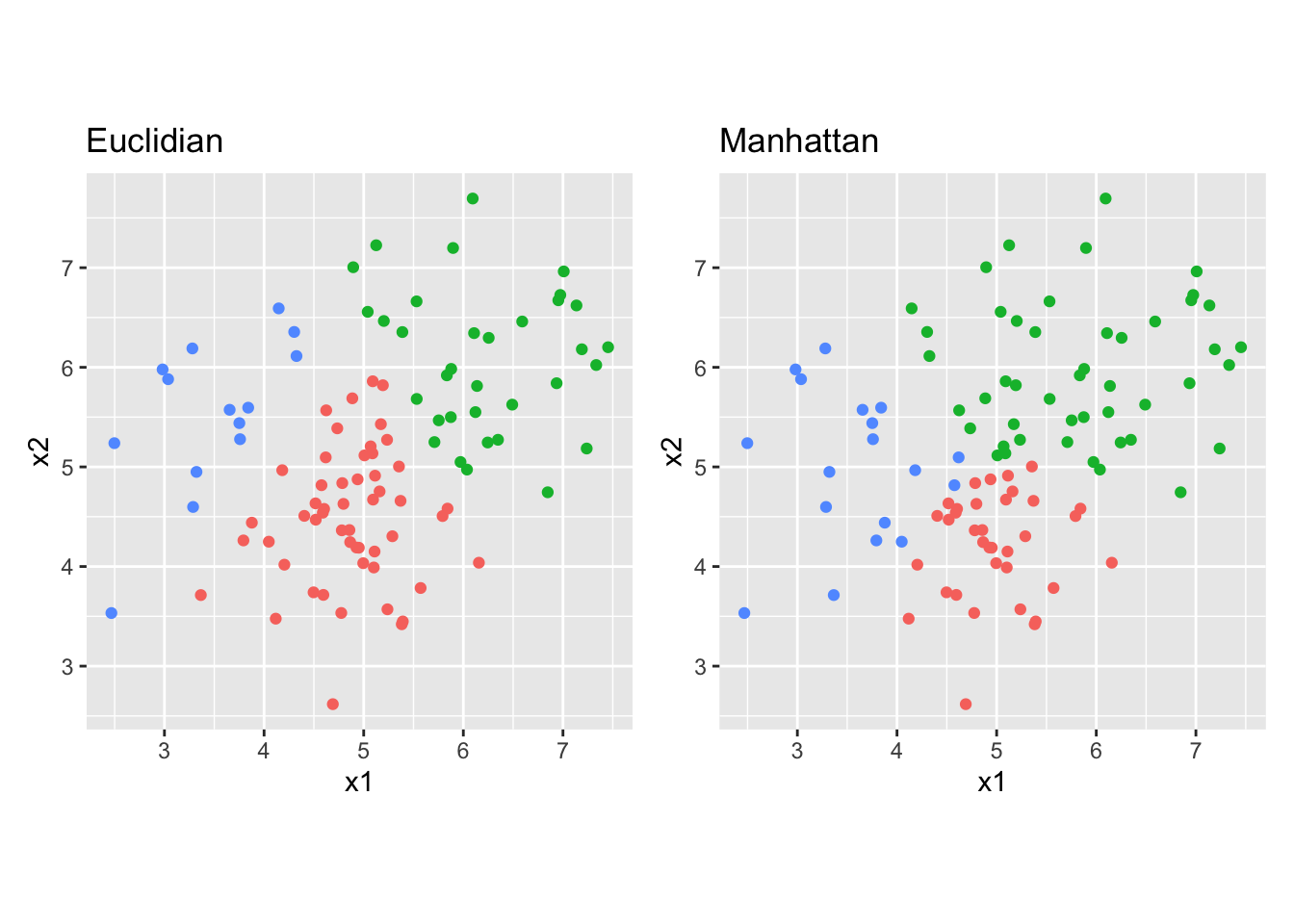

  1. Use the cutree() function to obtain the cluster assignments for three clusters and compare the cluster assignments to the 3-cluster euclidian solution. Do this comparison by creating two scatter plots with cluster assignment mapped to the colour aesthetic. Which difference do you see?
clus_1 <- as_factor(cutree(res_s, 3))
clus_2 <- as_factor(cutree(res_s2, 3))

p1 <- df_s %>%
  ggplot(aes(x = x1, y = x2, colour = clus_1)) +
  geom_point() +
  ggtitle("Euclidian") +
  theme(legend.position = "n") +
  coord_fixed()

p2 <- df_s %>%
  ggplot(aes(x = x1, y = x2, colour = clus_2)) +
  geom_point() +
  ggtitle("Manhattan") +
  theme(legend.position = "n") +
  coord_fixed()

p1 + p2

# The manhattan distance clustering prefers more rectangular classes, whereas
# the euclidian distance clustering prefers circular classes. The difference is
# most prominent in the very center of the plot and for the top right cluster

K-means clustering

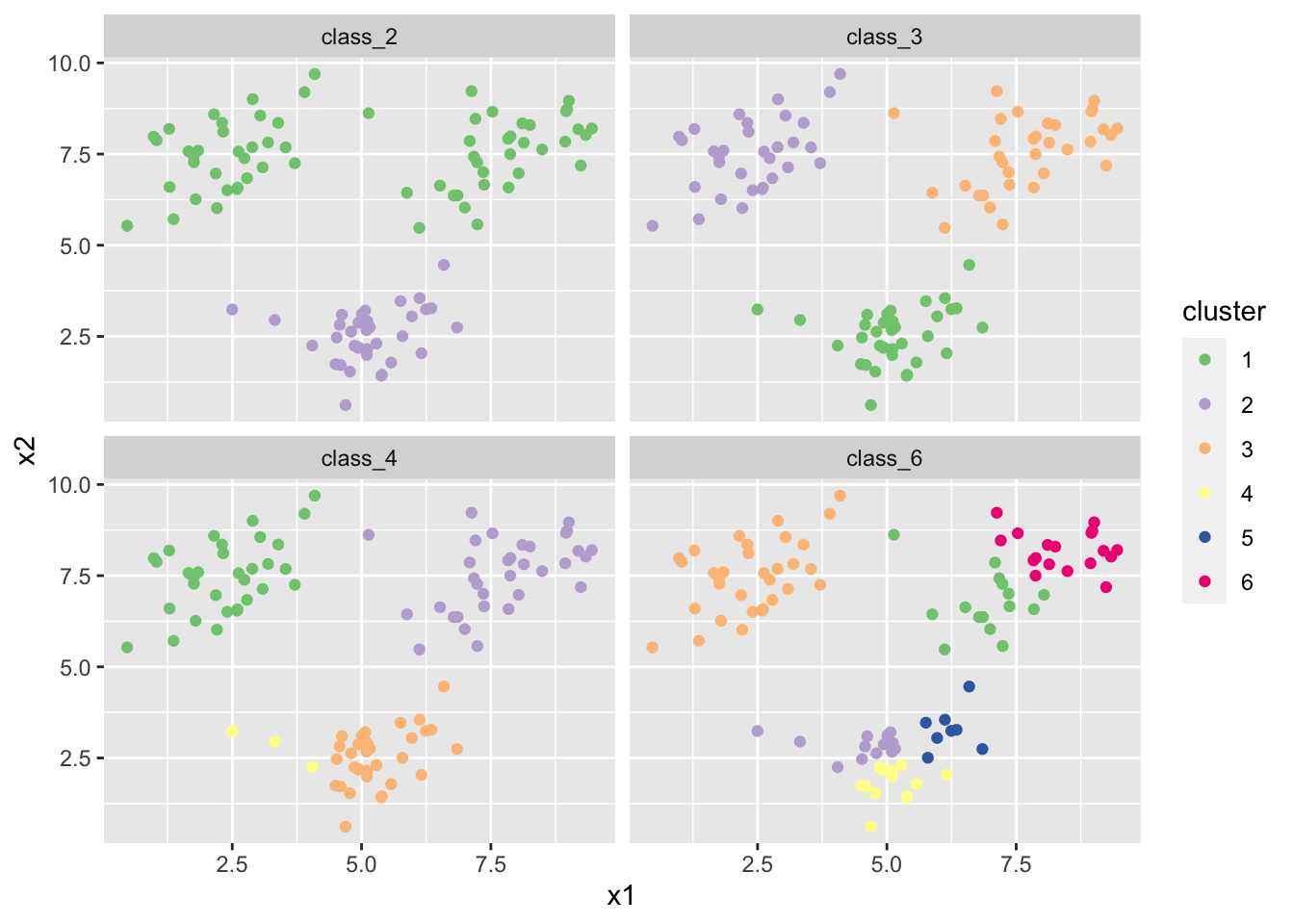

  1. Create k-means clusterings with 2, 3, 4, and 6 classes on the large difference data. Again, create coloured scatter plots for these clusterings.
# I set the seed for reproducibility
set.seed(45)
# we can do it in a single pipeline and with faceting
# (of course there are many ways to do this, though)
df_l %>%
  mutate(
    class_2 = as_factor(kmeans(df_l, 2)$cluster),
    class_3 = as_factor(kmeans(df_l, 3)$cluster),
    class_4 = as_factor(kmeans(df_l, 4)$cluster),
    class_6 = as_factor(kmeans(df_l, 6)$cluster)
  ) %>%
  pivot_longer(cols = c(class_2, class_3, class_4, class_6),
               names_to = "class_num", values_to = "cluster") %>%
  ggplot(aes(x = x1, y = x2, colour = cluster)) +
  geom_point() +
  scale_colour_brewer(type = "qual") + # use easy to distinguish scale
  facet_wrap(~class_num)

  1. Do the same thing again a few times. Do you see the same results every time? where do you see differences?
# I set the seed for reproducibility
set.seed(46)
df_l %>%
  mutate(
    class_2 = as_factor(kmeans(df_l, 2)$cluster),
    class_3 = as_factor(kmeans(df_l, 3)$cluster),
    class_4 = as_factor(kmeans(df_l, 4)$cluster),
    class_6 = as_factor(kmeans(df_l, 6)$cluster)
  ) %>%
  pivot_longer(cols = c(class_2, class_3, class_4, class_6),
               names_to = "class_num", values_to = "cluster") %>%
  ggplot(aes(x = x1, y = x2, colour = cluster)) +
  geom_point() +
  scale_colour_brewer(type = "qual") + # use easy to distinguish scale
  facet_wrap(~class_num)

# there is label switching in all plots. There is a different result altogether
# in the class_4 solution in my case.
  1. Find a way online to perform bootstrap stability assessment for the 3 and 6-cluster solutions.
# I decided to use the function clusterboot from the fpc package
# NB: this package needs to be installed first!
# install.packages("fpc")
library(fpc)

# you can read the documentation ?clusterboot to figure out how to use this
# function. This can take a while but is something you will need to do a lot in
# the real world!
boot_3 <- clusterboot(df_l, B = 1000, clustermethod = kmeansCBI, k = 3,
                      count = FALSE)
boot_6 <- clusterboot(df_l, B = 1000, clustermethod = kmeansCBI, k = 6,
                      count = FALSE)

# the average stability is much lower for 6 means than for 3 means:
boot_3$bootmean
[1] 0.9844165 0.9730219 0.9739694
boot_6$bootmean
[1] 0.7844248 0.5383414 0.7593547 0.7230086 0.6897734 0.7091287
